Portable Dental X-Ray Machine with 3.1-Inch LCD – KL-RYJC110
Lightweight Mobility
Intuitive Controls
Precise Exposure
Stable Imaging Output
Layered Protection
Flexible Power
Share to:
Overview

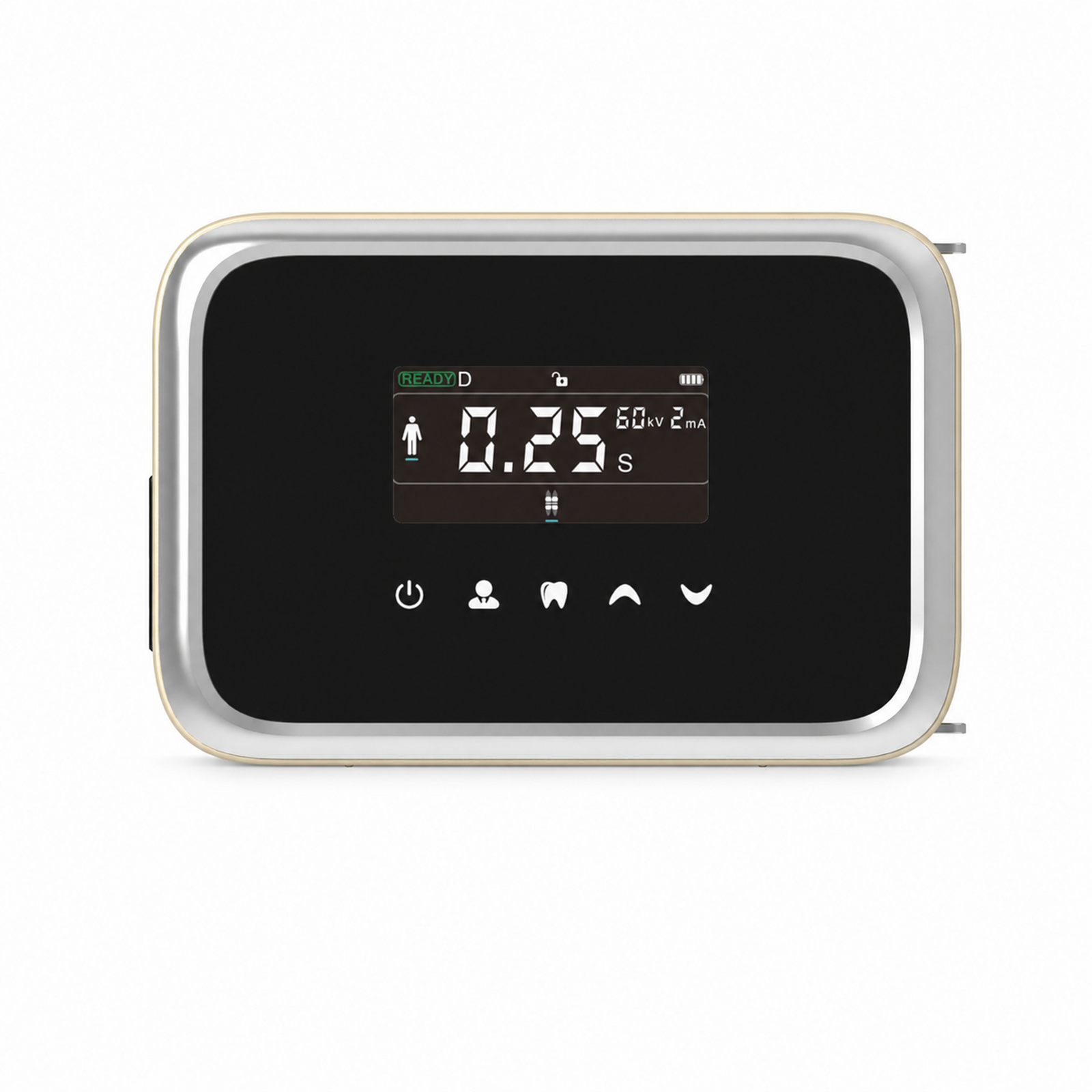

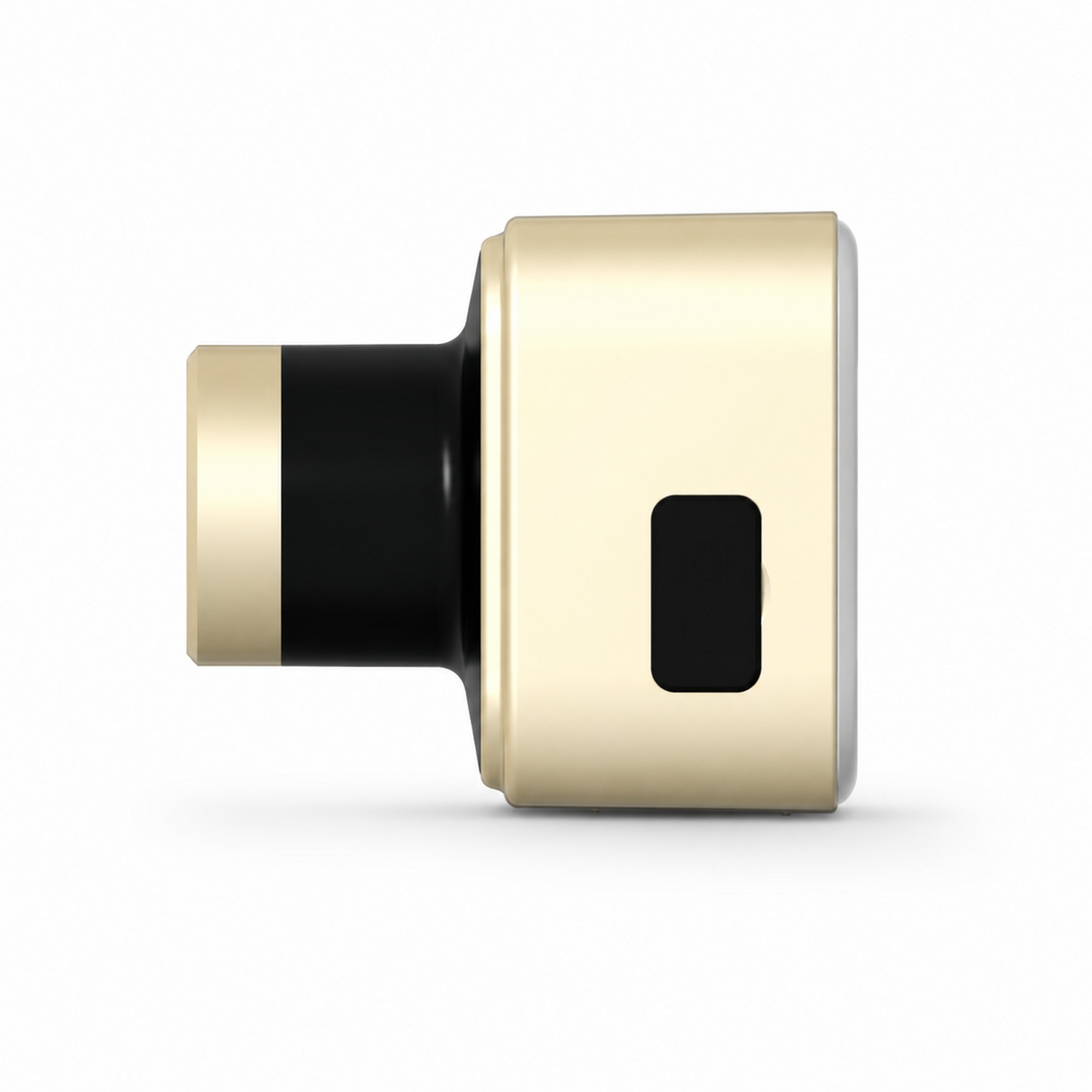

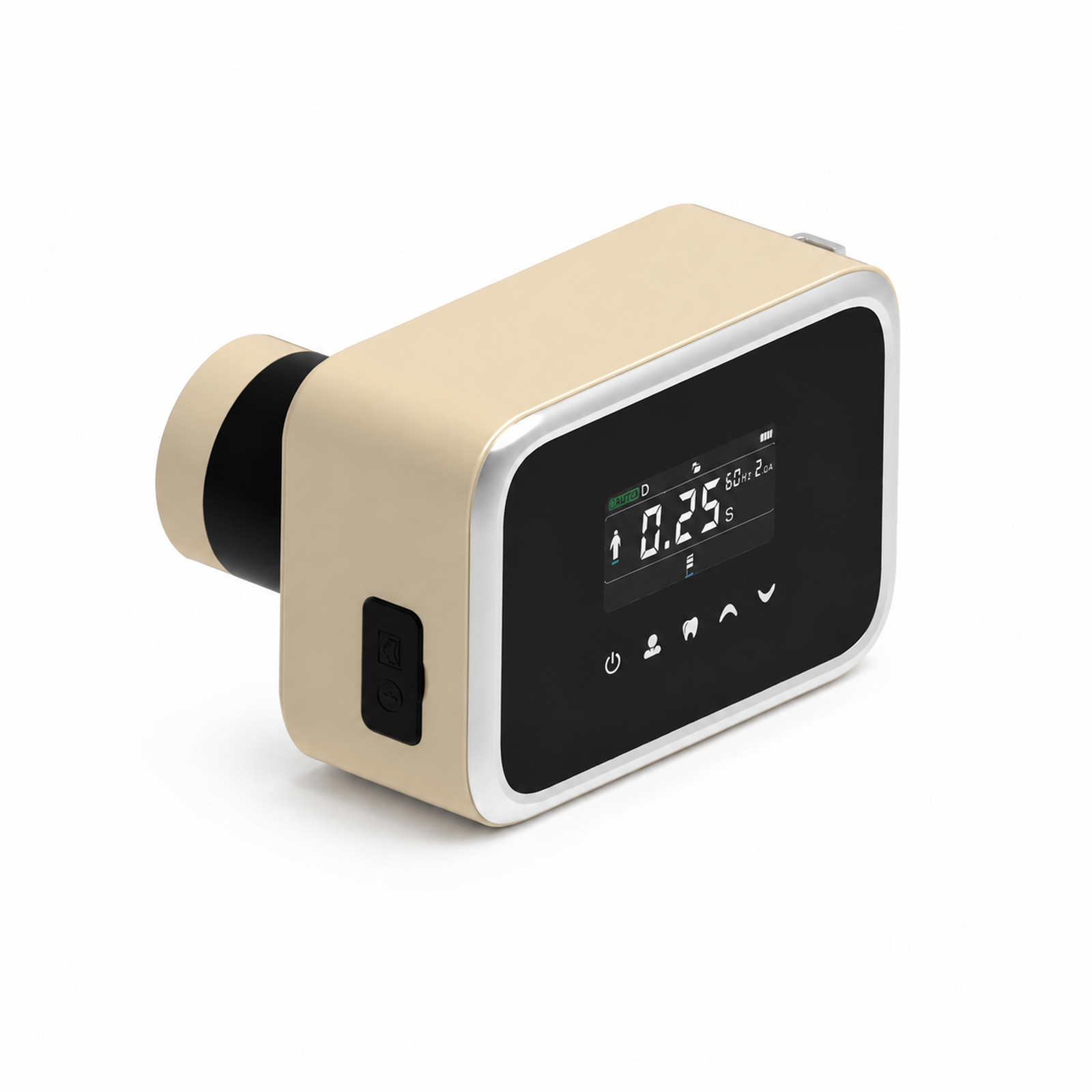

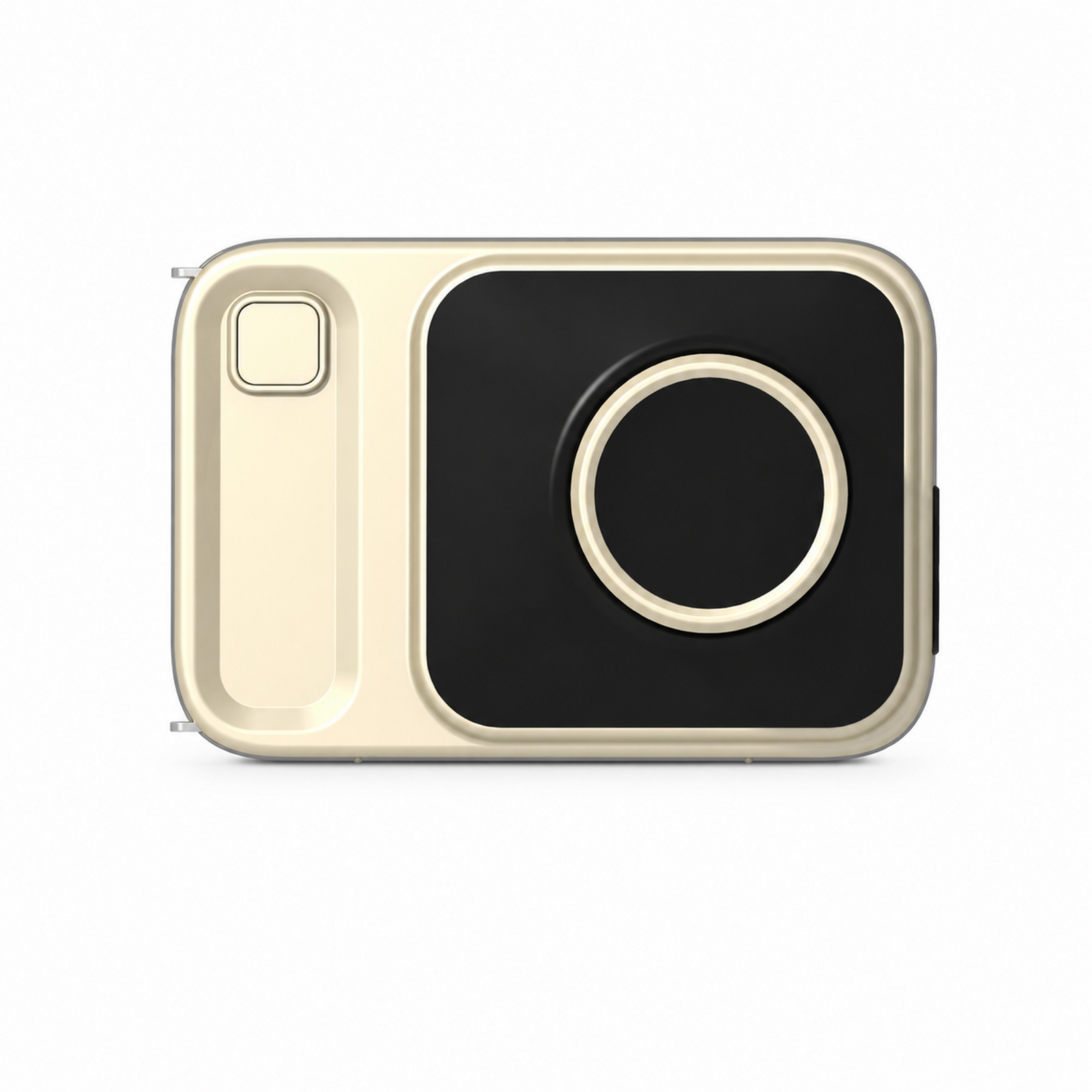

Portable Handheld Dental X-Ray Machine with 3.1-Inch LCD Touch Control,KL-RYJC110
Designed for mobile and chairside imaging workflows, this portable dental X-ray machine combines a lightweight 1.6 kg body with a clear 3.1-inch LCD touch interface. Adult, child, and tooth selection modes simplify operation, while the adjustable 0.01–2.0-second exposure range provides flexible control.
Its 60 kV tube voltage, 2.5 mA tube current, 0.4 mm focal spot, and 400 kHz high-frequency inverter support stable dental image capture. Four-layer radiation shielding incorporates shielding nanomaterials and a lead sheet for added operational protection. A 22.2 V, 950 mAh battery and 100–240 V input make the unit suitable for flexible professional dental workflows.
Details
Key Selling Points
Lightweight 1.6 kg handheld design
Clear 3.1-inch LCD touch controls
Adult, child, and tooth selection modes
Adjustable 0.01–2.0-second exposure time
60 kV tube voltage and 2.5 mA tube current
Compact 0.4 mm focal spot
Four-layer radiation shielding design
Universal 100–240 V, 50/60 Hz input
Specifications
| Voltage | DC 22.2 V | Battery | 950 mAh / 21.09 Wh |
|---|---|---|---|
| Focal Spot | 0.4 mm | Tube Voltage | 60 kV |
| Tube Current | 2.5 mA | Exposure Time Range | 0.01–2.0 s |
| Weight | 1.6 kg | Line Voltage | 100–240 V 50/60 Hz |
1. What are the dimensions and weight?
The unit measures approximately 190 × 126 × 76.2 mm and weighs 1.6 kg.
2. What are its main X-ray output specifications?
It operates at 60 kV with a 2.5 mA tube current and a 0.4 mm focal spot.
3. Can the exposure time be adjusted?
Yes. The exposure time can be set from 0.01 to 2.0 seconds.
4. What power specifications does it use?
It uses a 22.2 V, 950 mAh/21.09 Wh battery and supports 100–240 V, 50/60 Hz input.
5. Who should operate this equipment?
The device is intended for trained dental professionals and should be operated according to the product manual and applicable local radiation-safety regulations.
