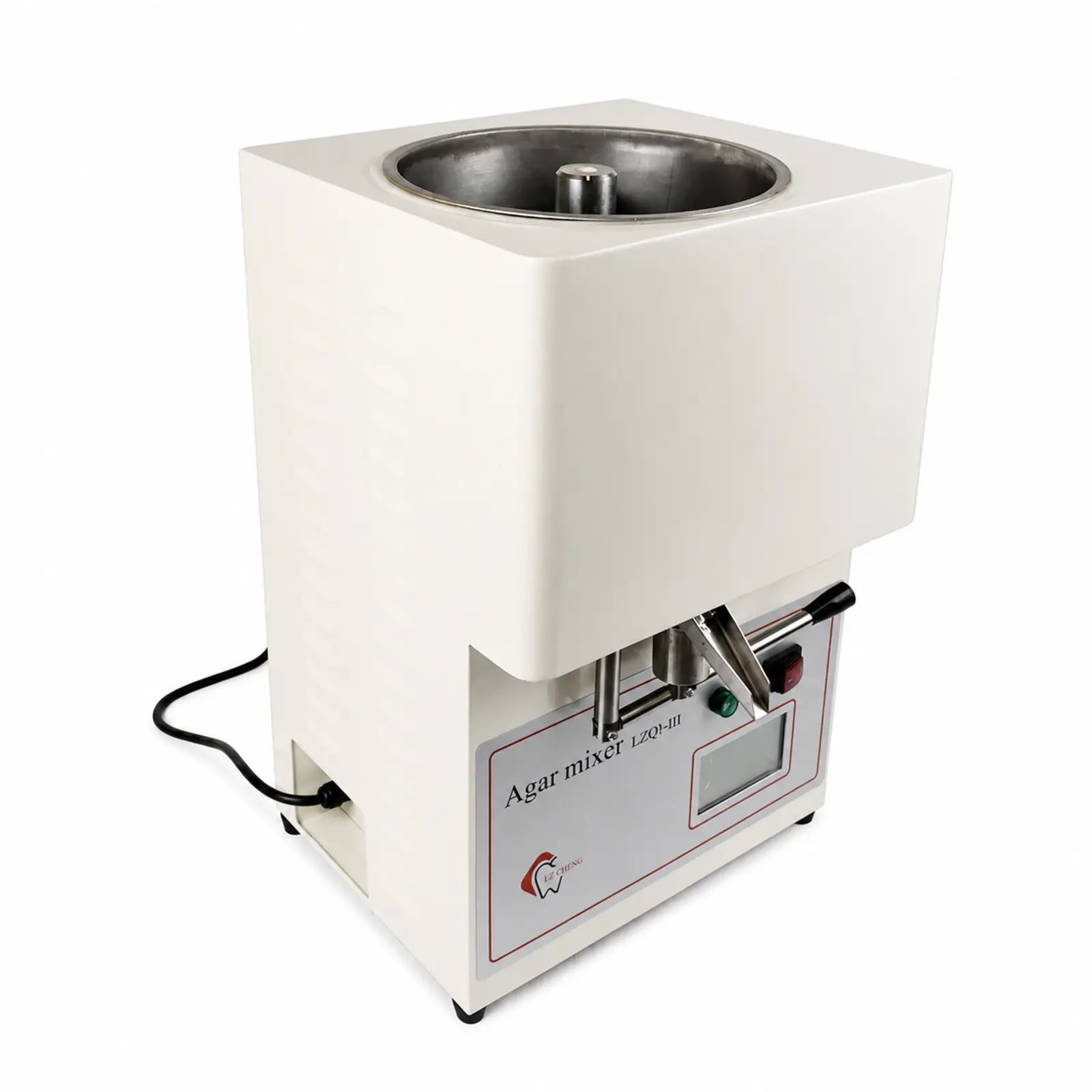

Dental Gel Agar Mixer Dental Duplicating Machine KL-LZQJ-11L
5L, 11L and 20L Capacity Options
Efficient Agar Heating and Mixing
Stable 28rpm Stirring Performance
Uniform Temperature Distribution
Easy Operation and Maintenance
Designed for Dental Laboratories
Share to:
Overview
These dental agar duplicating machines are designed for heating, melting and mixing agar materials used in dental laboratory duplication procedures. Available in 5L, 11L and 20L capacities, the series accommodates different laboratory workloads.
Powerful heating elements and consistent stirring help maintain uniform material temperature and texture. The durable enclosed structure, straightforward controls and multiple voltage configurations make these machines suitable for routine dental laboratory use.
Details

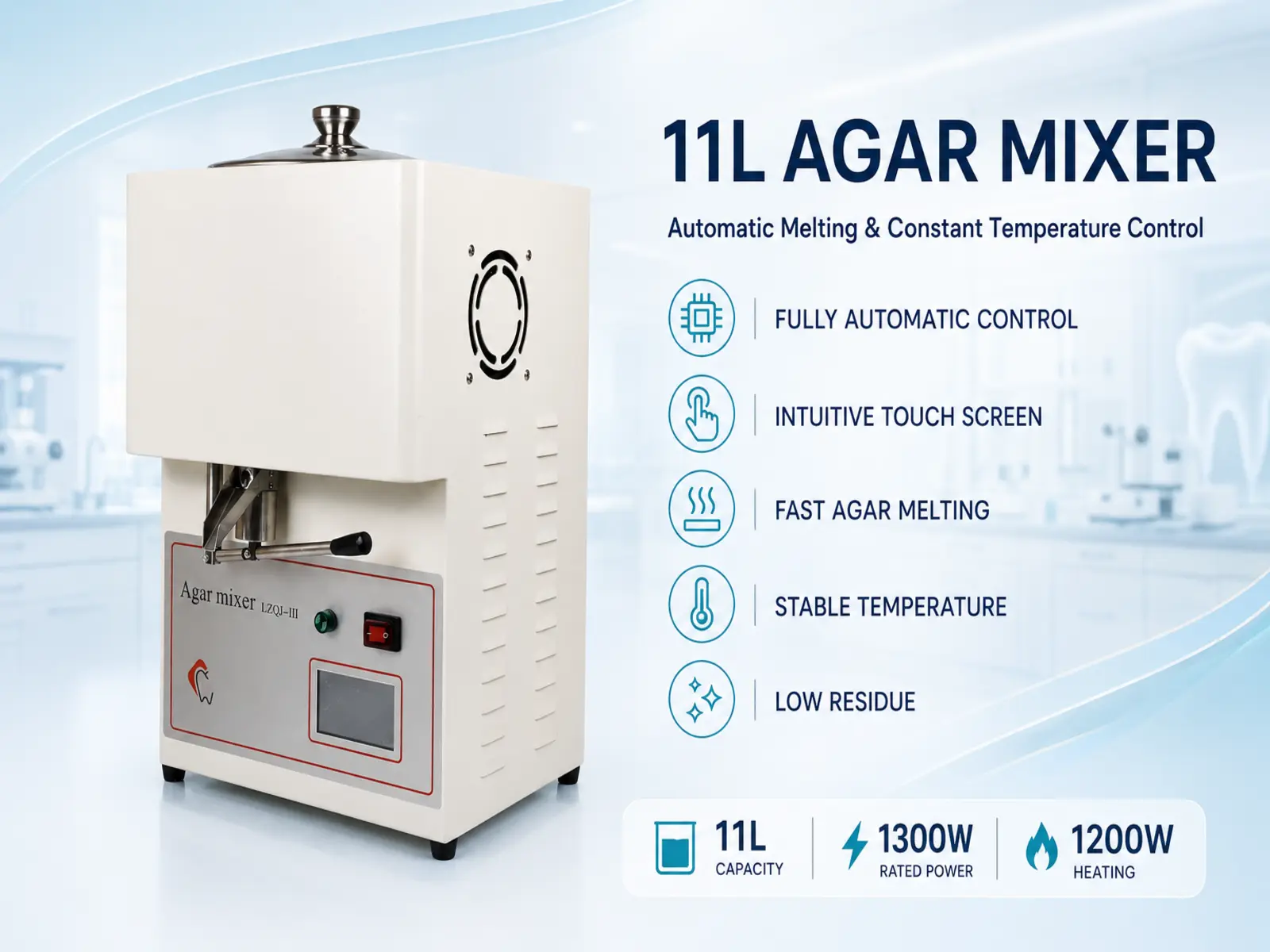

Agar-agar mixer 11L capacity
This machine is used for melting and constant temperature preservation of AGAR copy material, themachine is fully automatic control, simple operation, melting speed and other advantages.The machine adopts touch screen, simple and convenient program setting, intelligent control throughoutthe whole process, without manual intervention, fast melting speed, small temperature difference, noresidue.
Product Specifications Comparison
| Specification | KL-LZQJ-05L | KL-LZQJ-20L | KL-LZQJ-11L |
|---|---|---|---|
| Product Type | Agar Duplicating Machine | Agar Duplicating Machine | Intelligent Agar Mixer |
| Capacity | 5L | 20L | 11L |
| Voltage | AC 220V/50Hz or 110V/60Hz | AC 220V/50Hz or 110V/60Hz | 110V/50Hz or 220V/60Hz |
| Rated Power | — | — | 1300W |
| Heating Power | 800W | 1000W × 2 | 1200W |
| Stirring Speed | 28rpm | 28rpm | — |
| Agar Processing Capacity | 2–5kg | 10–20kg | — |
| Dimensions | 420 × 420 × 590mm | 540 × 540 × 710mm | 360 × 330 × 580mm |
| Weight | 26kg | 52kg | — |
1. What are these agar duplicating machines used for?
They are used to heat, melt and mix agar materials for producing duplicate dental models and other laboratory applications.
2. Which capacities are available?
The series includes 5L, 11L and 20L models, allowing laboratories to choose according to their daily workload.
3. Which model is suitable for a small dental laboratory?
The 5L model is suitable for laboratories with lower processing volumes or limited workspace. The 11L and 20L models are better suited to medium or high-volume use.
4. What voltage options are available?
Depending on the model, configurations include AC 220V/50Hz and 110V/50–60Hz. Confirm the required voltage before ordering.
5. How should the machine be maintained?
Disconnect the power and allow the machine to cool before cleaning. Remove residual agar after use and keep the mixing chamber clean and dry. Follow the operating manual for detailed maintenance instructions.
